Expansion Joints

Synapse Series

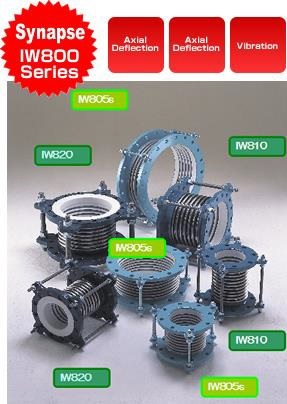

Synapse [IW800] Series short interface type Expansion Joints absorb vibration/thermal expansion in various types of pipes and devices in all plants and utilities etc., via their comparatively short interface (compact installation dimensions). As the expansion part is metal, it has superior pressure resistance/heat resistance, and the series is more than capable of withstanding harsh pipe specifications.

Low pressure Specifications

  • (Single Type), IW805w (Double Type)
  • Installation within pipes is also possible. As it is bound by welding bellows and fittings, there is no concern about leaks.

Medium/High Pressure Specifications

  • W810 "for 1MPa", IW820 "for 2MPa"
  • With Reinforcing Ring, Tie Rod Bolt.
  • Installation within pipes is also possible. As it is bound by welding bellows and fittings, there is no concern about leaks.

Features

  • 1

    Short Interface: The short interface makes absorption of displacement a possibility, and is also compatible with ultra narrow pipe layouts.

  • 2

    High Strength As: the expansion part is metal, it can withstand ultra high pressure specifications.

  • 3

    Heat Resistance: As the expansion part is metal, it can withstand ultra high temperature specifications.

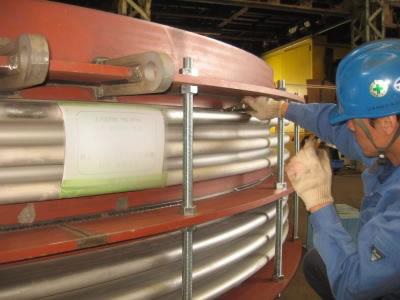

Expansion Joints Bellows Type Metal

Uses

  • 1

    Absorbing vibrations in devices (pumps/blowers etc.)

  • 2

    Absorbing thermal expansion in pipes.

  • 3

    Absorbing dislocation of pipes etc. due to earthquakes and land subsidence.

Specifications

Pressure: -0.1MPa (F.V) – +3MPa
Temperature: -238°C – 700°C
Fluid: Water/Oil/Air/Exhaust Gas/Powder/Others

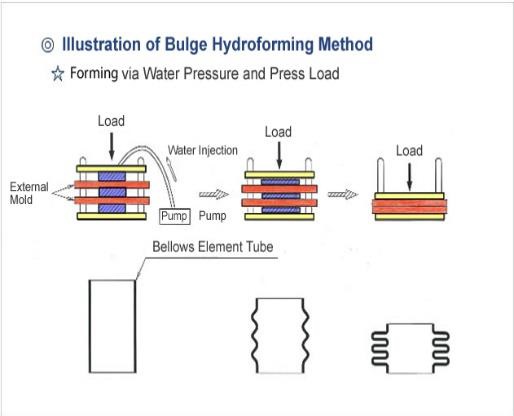

Hydroforming System

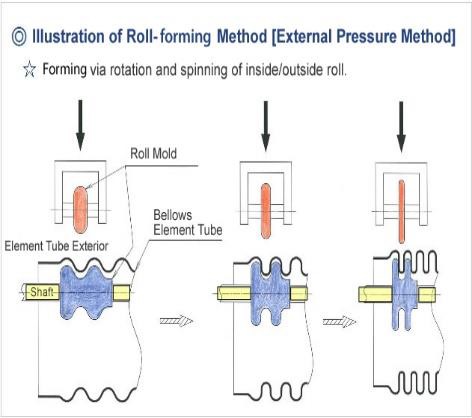

Roll Forming System

Bellows

Expansion Joints Non metal Type (Fabric)

Uses

  • 1

    Absorption of pipe thermal expansion.

  • 2

    Absorption of pipe shift due to earthquakes and landsubsidence.

  • 3

    Vibration absorption for pumps, engines etc.

Specifications

Working Pressure: -30kPa ~ +30kPa
Working Temperature: room temperature ~ 1200°C
Applied Fluid: Gas/Exhaust gas/Dust

Bulge Hydroforming Products

Dampers

Flexible Tubes

Teflon Tubes and Bellows
