ProClamp® Engineered Clamp for Leak Repair

Piping, Pipeline, Flanges And Valves

ProClamp® effectively integrating three attributes of online leak sealing technology: clamp, sealant and injection tools.

ProClamp® is designed to contain the leak point by introducing higher pressure than leaking system pressure by hydraulic injection tools to fill the clamp cavity with ProSeal™ sealant compound.

ProSeal™ sealant compound are capable of covering leaks within a wide range of temperatures and pressures, also compatible with most type of chemicals acids.

Features:

  • Applied on-line without shutdown
  • No surface preparation required
  • Cold work
  • Instant Repair
  • Removable / Reusable

Applications:

  • Strengthening
  • Straight Pipe Leak Repair
  • Tee, Elbow, Reducer Leak Repair
  • Valve Leak Repair
  • Flange Leak Repair

Click to enlarge image

clamp1
clamp2
clamp3
clamp4
clamp5
clamp6
clamp7
clamp8
Previous
Next
clamp12
clamp13
clamp14
clamp15
clamp16
clamp17
clamp18
rsz_clamp19
Previous
Next

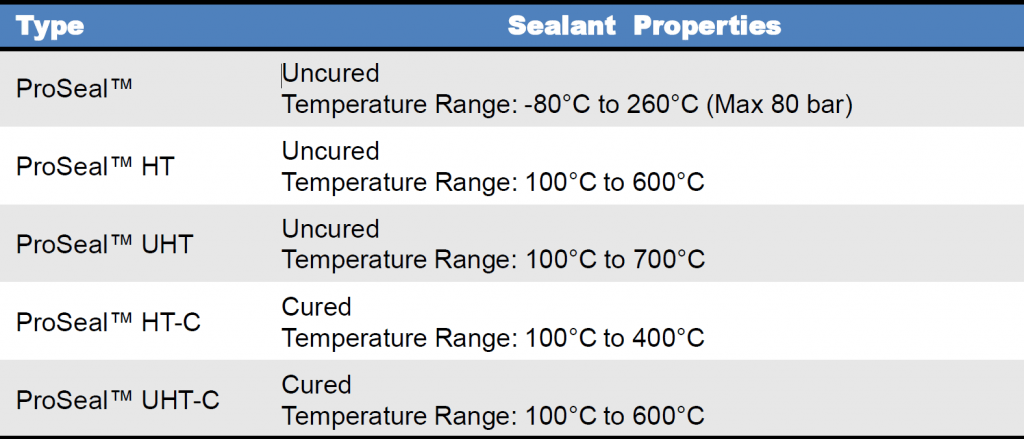

Technical Data Specifications

ProClamp®

ProSeal™

Epoxy Grouted Bolted Sleeve - Permanent Pipeline Repair Solution

Strengthening of Risers & Subsea Pipelines

ProSleeve™ is an engineered pipeline repair system that combines high performance epoxy grout with an oversized steel sleeves as a permanent repair solution for severely corroded risers and subsea pipelines.
The epoxy consists of a load bearing epoxy grout filler mixed with load bearing. The physical properties allow its use in applications requiring high load bearing strength and excellent adhesion under adverse application conditions.

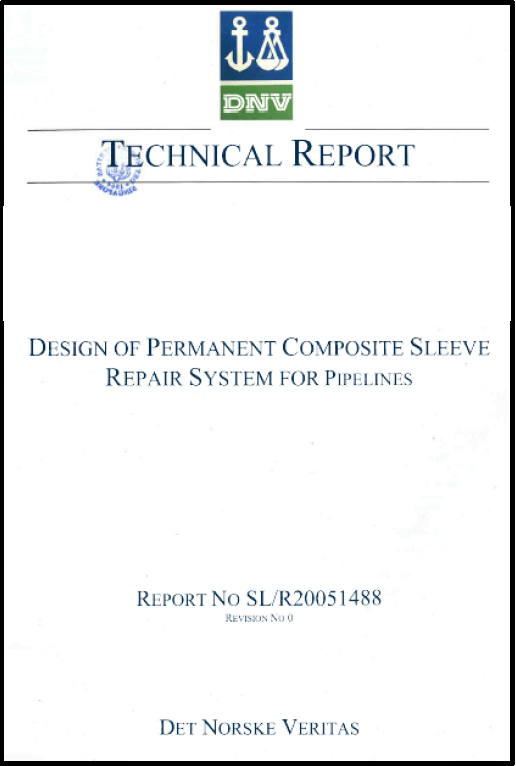

  • Certified by DNV as permanent repair solution.
  • Repair is performed on-line, no shut down required.
  • The system has good structural strength and bonded with the pipeline.
  • The repaired section will be corrosion resistant and has an expected life expectancy exceeding the host pipeline.
  • Costly pipeline sectional replacement can be avoided, hence cost effective pipeline repair solution.
